Annotator Command¶

The boxlab annotator command launches the interactive GUI application for viewing, editing, and auditing object detection datasets.

Overview¶

The annotator provides a complete desktop interface for dataset management with features including:

Visual annotation editing
Multi-split navigation
Audit workflows
Image tagging
Workspace persistence
Auto-backup

Basic Usage¶

boxlab annotator

No arguments required. The command opens the GUI application.

Alternative Methods¶

As Python Module¶

python -m boxlab annotator

With Poetry (Development)¶

poetry run boxlab annotator

Direct Python Import¶

from boxlab.annotator import AnnotatorApp

app = AnnotatorApp()
app.run()

Application Interface¶

Layout Overview¶

File | View | Audit | Help

Image List Panel

Browse images
Filter by status
Split selector

Canvas

Annotation display
Interactive editing

Info Panel

Metadata
Tags
Statistics
Audit info

Status: Ready

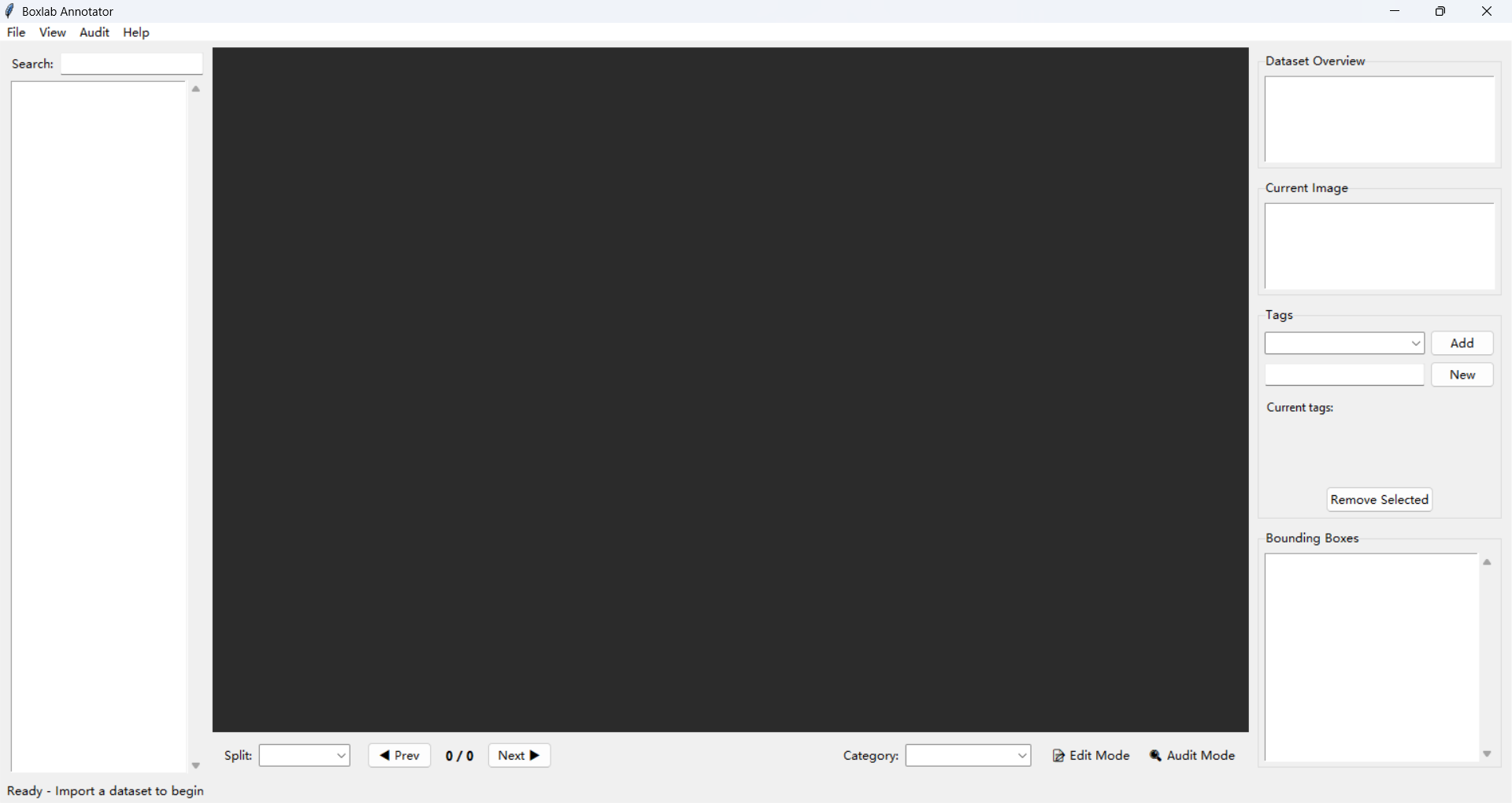

The BoxLab Annotator interface showing all main components

Components¶

Image List Panel (Left) - Browse all images in current split - Filter by audit status - Search functionality - Visual status indicators

Canvas (Center) - Display images with annotations - Edit bounding boxes - Zoom and pan controls - Selection and resizing

Control Panel (Center Bottom) - Navigation buttons - Split selector - Edit mode toggle - Category selector - Audit controls

Info Panel (Right) - Image metadata - Annotation statistics - Tag management - Audit information

Status Bar (Bottom) - Current operation status - Active image information - Modification indicators

Keyboard Shortcuts¶

←                 Previous image
→                 Next image

View¶

Ctrl + Mouse Wheel    Zoom in/out
Mouse Wheel           Scroll vertically
Shift + Mouse Wheel   Scroll horizontally
Ctrl + 0              Reset zoom
Middle Mouse Drag     Pan view

Editing¶

Delete                Delete selected annotation
Ctrl + Z              Undo last change
Right Click           Show context menu
Drag Corners          Resize diagonally
Drag Edges            Resize horizontally/vertically
Click BBox            Select annotation

Audit¶

F1                    Approve current image
F2                    Reject current image

File Operations¶

Ctrl + O              Open workspace
Ctrl + S              Save workspace
Ctrl + Shift + S      Save workspace as
Alt + F4              Exit application

Workflows¶

Import and Browse¶

Launch annotator:

boxlab annotator

Import dataset:
- File → Import Dataset...
- Select format (COCO/YOLO/Raw)
- Choose path
- Select splits
- Optionally add initial tags
Browse images:
- Use arrow keys or image list
- Switch splits with dropdown
- View annotations and metadata

Annotation Editing¶

Enable Edit Mode:
- Click "Edit Mode" toggle in Control Panel
- Or use checkbox in menu
Create annotations:
- Select category from dropdown
- Click and drag on canvas
- Release to create bounding box
Edit annotations:
- Click to select
- Drag corners for diagonal resize
- Drag edges for horizontal/vertical resize
- Drag center to move (if enabled)
Delete annotations:
- Select annotation
- Press Delete key
- Or right-click → Delete
Save changes:
- File → Save Workspace (Ctrl+S)

Audit Workflow¶

Enable Audit Mode:
- Check "Audit Mode" in Control Panel
- Audit controls become visible
Review image:
- Check annotations for correctness
- Verify bounding box quality
- Assess image quality
Make decision:
- Press F1 to approve
- Press F2 to reject
- Add comment (optional)
- Automatically moves to next
Track progress:
- View statistics in Info Panel
- Use audit filter in Image List
- Generate report when complete
Export audit report:
- Audit → Export Audit Report...
- Save as JSON file

Workspace Management¶

Saving Workspace:

# First save (creates .cyw file)
File → Save Workspace As... (Ctrl+Shift+S)

# Subsequent saves
File → Save Workspace (Ctrl+S)

Loading Workspace:

# Open existing workspace
File → Open Workspace... (Ctrl+O)

# Select .cyw file
# Complete state is restored

Workspace Contents:

Dataset structure
All annotations (original + edits)
Audit status and comments
Image tags
Current view state
Split organization

Export Dataset¶

Make changes to dataset (annotations, audits, tags)
Export:
- File → Export Dataset...
- Select format (COCO/YOLO)
- Choose output directory
- Select naming strategy
- Configure options
Options:
- Copy images: Yes/No
- Naming strategy: original/uuid/sequential/etc.
- Unified structure (YOLO)
Audit mode exports:
- Includes audit_report.json
- Filter by audit status (optional)

Features¶

Image Tagging¶

Add tags:

Select image
In Info Panel → Tags section
Type tag name
Press Enter or click Add

Create new tag:

Type new tag name
Click "Create New Tag"
Tag becomes available for all images

Remove tags:

Click × on tag in current tags
Tag removed from image

Tag uses:

Organize images by topic
Mark images for review
Filter in image list
Export subsets

Audit System¶

Audit Status:

Pending: Not yet reviewed (gray)
Approved: Passed review (green ✓)
Rejected: Failed review (red ✗)

Audit Filter:

Show All
Show Pending Only
Show Approved Only
Show Rejected Only

Audit Comments:

Add notes for each image
Explain rejection reasons
Track review decisions
Included in report

Audit Report:

Total images
Approved/Rejected/Pending counts
Per-image details
Comments
Timestamps
JSON format for processing

Auto-Backup¶

Automatic backup triggers:

Uncaught exceptions
Application crashes
Critical errors

Backup location:

~/.boxlab/backups/

Backup contents:

Full workspace state
All annotations
Audit information
Tags

Recovery:

# Launch annotator
boxlab annotator

# Open backup
File → Open Workspace...
# Navigate to ~/.boxlab/backups/
# Select backup file

Integration with CLI¶

Import → Edit → Export Pipeline¶

# 1. Import dataset
boxlab annotator
# File → Import → Select COCO dataset

# 2. Edit annotations
# Make changes in GUI

# 3. Save workspace
# File → Save Workspace As → project.cyw

# 4. Export
# File → Export → Select YOLO format

Merge → Review → Export Pipeline¶

# 1. Merge datasets via CLI
boxlab dataset merge \
  -i data/ds1.json coco \
  -i data/ds2.json coco \
  -o data/merged

# 2. Review in annotator
boxlab annotator
# File → Import → Load merged dataset

# 3. Verify quality
# Enable audit mode
# Review images

# 4. Export final
# File → Export → Select format

Convert → Verify → Audit Pipeline¶

# 1. Convert format via CLI
boxlab dataset convert input.json -if coco output -of yolo

# 2. Verify in annotator
boxlab annotator
# File → Import → Load converted dataset

# 3. Audit for errors
# Enable audit mode
# Check conversions

# 4. Re-export if needed
# File → Export

Tips and Best Practices¶

1. Save Frequently¶

# Use Ctrl+S regularly
# Auto-backup only activates on crashes

2. Use Audit Mode for Quality Control¶

# After importing:
1. Enable Audit Mode
2. Review systematically
3. Mark issues
4. Export report
5. Fix issues
6. Re-audit

3. Organize with Tags¶

# Create tag system:
- quality:high, quality:low
- source:camera1, source:camera2
- status:needs_review
- difficulty:hard

4. Leverage Workspaces¶

# Save intermediate states:
project_initial.cyw       # After import
project_annotated.cyw     # After annotation
project_audited.cyw       # After audit
project_final.cyw         # Before export

5. Use Keyboard Shortcuts¶

# Efficient navigation:
→ to next
F1 to approve
F2 to reject
→ to next (automatically)

# Fast audit:
Review → F1/F2 → Next → Repeat

6. Zoom for Precision¶

# Small annotations:
Ctrl + Mouse Wheel to zoom in
Edit with precision
Ctrl + 0 to reset

7. Filter Smart¶

# Image list filters:
- Filter by split
- Filter by audit status
- Search by filename
- Combine filters

Reference¶

Annotator API - API documentation
CLI Overview - General CLI guide
